Exploring the Arduino Nano Matter: A New Era in Smart Home Integration
The Arduino Nano Matter, introduced in 2024, is the latest addition to the Nano family, designed to simplify smart home integration. This microcontroller board leverages the Matter standard, making it easier than ever to connect and control devices in a smart home environment.
Key Features of Arduino Nano Matter
The Arduino Nano Matter is renowned for its compact size, making it the smallest Arduino board available. This feature is perfect for compact and portable projects, providing the flexibility needed for innovative designs. Its primary highlight is the ease with which it integrates with smart home systems using the Matter standard, enabling seamless connection and control of various devices.
HID Functionality and Bluetooth Connectivity
One of the standout features of the Arduino Nano Matter is its human device interface (HID) functionality. This allows users to interact with the board using peripherals like keyboards, mice, and game controllers. Additionally, the board is equipped with Bluetooth connectivity, facilitating wireless communication and broadening the range of potential applications.
Smart Home Automation and IoT Projects
The Arduino Nano Matter excels in smart home automation projects. Users can create custom solutions for lighting, climate control, and security systems that integrate smoothly with existing smart home platforms. For IoT projects, the board’s wireless connectivity and compact form factor make it an excellent choice for developing sensor-based applications that communicate with other devices seamlessly.
Onboard Sensors and Applications
The board comes with various onboard sensors, offering a range of sensing capabilities crucial for numerous applications. These capabilities make the Arduino Nano Matter ideal for smart home automation, IoT projects, wearable devices, and robotics. Its compact size and robust functionality support innovative projects from custom automation solutions to advanced robotics.
Wearable Devices and Robotics
The versatility of the Arduino Nano Matter extends to wearable devices and robotics. Its compact size and sensing capabilities are perfect for creating smartwatches, fitness trackers, and other wearable tech. In robotics, the board can be used to develop sophisticated systems like robotic arms and autonomous vehicles, thanks to its robust processing power and connectivity options.

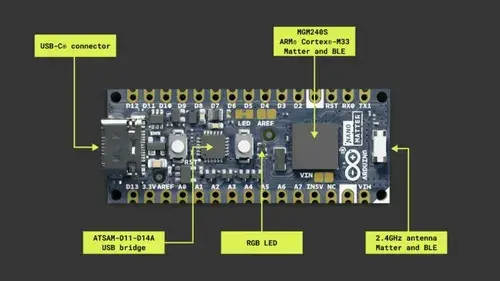

Arduino Nano Matte Technical Specifications Table
| Feature | Description |
|---|---|
| Microcontroller | SiLabs MGM240SD22VNA |
| Core | 32-bit Arm Cortex-M33 with DSP and FPU |
| Clock Speed | 78 MHz |
| Flash Memory | 1536 KB |
| RAM | 256 KB |
| Wireless Connectivity | Matter, IEEE 802.15.4 (Thread/Zigbee), Bluetooth 5.3, Bluetooth Mesh |
| Connectivity Frequency | 2.4 GHz |
| USB | USB-C port for power and data |
| Analog Inputs | 12-bit ADC (x19) |
| Digital I/O | 22 GPIO pins (2x UART, 2x I2C, 2x SPI, 5x PWM) |
| External Interrupts | Available for all digital pins |
| Debugging | JTAG/SWD debug port |
| Security | Secure Vault |
| Onboard Features | RGB LED, 2.4GHz antenna, 2x push buttons (RST and user button) |
| Power Supply | 5V via USB-C or header connector pins (VIN, IN5V) |
| Operating Voltage | 3.3V |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 45 x 18 mm |
| Weight | 4g |
| HID Functionality | Yes, supports peripherals like keyboard, mouse, and game controller |
| Bluetooth | Bluetooth 5.3, Bluetooth Mesh |
| Sensors | Onboard sensors for various applications |
| Community Support | Extensive resources, tutorials, and project guides available |
| Matter Standard | Yes, supports Matter protocol for seamless smart home integration |
| Compatibility | Compatible with Google Home, Apple Home, Amazon Alexa |
| Certification | Designed to facilitate certification for final products |
| Expansion Options | Castellated pins for integrating the board into final solutions |
| Programming Environments | Arduino IDE |
| User-Friendly Libraries | Comprehensive set of Arduino libraries for easy development |
| Prototyping Features | Onboard RGB LED for quick setups and visual feedback during prototyping |
Availability and Community Support
Currently available as a community preview, the Arduino Nano Matter invites users to experiment and provide feedback. This iterative process helps Arduino refine the product to better meet user needs. The Arduino community, known for its extensive resources and tutorials, plays a pivotal role in supporting new users and fostering innovative projects with the Arduino Nano Matter.
Ease of Use and Coding Simplicity
The Arduino Nano Matter is designed for ease of use, making it accessible even to those new to smart home technology. Demonstrations show how easy it is to get started, with onboard features like the RGB LED aiding quick prototyping. The simplicity of coding on this board, requiring only around 100 lines of code for Matter applications, further enhances its appeal.
Collaboration with Silicon Labs
The development of the Arduino Nano Matter is marked by a significant collaboration with Silicon Labs. This partnership has been crucial in developing the core and libraries necessary for the board’s functionality. The synergy between Arduino’s user-friendly approach and Silicon Labs’ technical expertise has resulted in a powerful yet accessible product.
Conclusion
The Arduino Nano Matter is poised to revolutionize smart home projects with its compact design, powerful features, and community-driven development. Its ease of use, extensive compatibility, and robust technical specifications make it a valuable tool for developers and hobbyists alike.
