Chuwi CoreBox 5th: A Comprehensive Review
The Chuwi CoreBox 5th is an innovative and compact mini PC designed for those seeking power and versatility in a small form factor. This review delves into the specifications, design, performance, and overall value of the CoreBox 5th, making it a compelling choice for various users.
Powerful Intel Core i5-13500H CPU
At the heart of the CoreBox 5th lies the Intel Core i5-13500H processor. This 13th-gen mobile CPU boasts four performance cores and eight efficiency cores, providing a balanced combination of power and efficiency. The clock speeds range from 2.6 GHz to 4.7 GHz, ensuring smooth performance for both single-threaded and multi-threaded applications.
High-Performance Intel Iris Xe Graphics
Complementing the robust CPU is the Intel Iris Xe integrated GPU, featuring 80 Execution Units. While not designed for high-end gaming, the Iris Xe graphics provide adequate performance for casual gaming, video playback, and light content creation tasks.
Generous Memory and Storage
The CoreBox 5th is equipped with 16GB of DDR5-5600 RAM, expandable up to 64GB, making it future-proof for demanding applications. The 512GB FORESEE XP1000F512G NVMe SSD offers fast storage, with additional slots available for further expansion, ensuring ample space for your data.
Versatile Connectivity Options
Connectivity is a standout feature of the CoreBox 5th. It includes six USB 3.2 Gen 1 Type-A ports, a single USB 3.2 Gen 1 Type-C port, two HDMI 2.0 ports, two DisplayPort 1.4 outputs, and a 3.5mm universal audio jack. This extensive array of ports allows users to connect multiple peripherals and displays, enhancing productivity.
Chuwi Corebox 5th Technical Specifications
| Specification | Detail |
|---|---|
| CPU | Intel Core i5-13500H |
| CPU Cores | 12 cores (4 P-cores, 8 E-cores) |
| CPU Threads | 16 threads |
| CPU Base Clock | 2.6 GHz |
| CPU Max Boost Clock | 4.7 GHz |
| GPU | Intel Iris Xe (80 EUs) |
| RAM | 16GB DDR5-5600 (expandable to 64GB) |
| Storage | 512GB FORESEE XP1000F512G NVMe SSD |
| Storage Expansion | Yes (additional M.2 slot available) |
| USB Ports (Front) | 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C |
| USB Ports (Rear) | 4x USB 3.2 Gen 1 Type-A |
| HDMI Ports | 2x HDMI 2.0 |
| DisplayPort | 2x DisplayPort 1.4 |
| Audio Jack | 1x 3.5mm universal audio jack |
| LAN Port | 1x 2.5GbE LAN |
| Wireless | WiFi 6 (AX201), Bluetooth 5.1 |
| Operating System | Windows 11 Pro (pre-installed) |
| Base Power | 65W |
| Max Turbo Power | 95W |
| PSU | 19V 4.74A |
| Cooling System | Slim heatsink with 4 copper heat pipes, 3,400 RPM fan |
| Dimensions | 173 x 158 x 73 mm |
| Weight | 930 g |
| Design | Black, sand-blasted oxidation, plastic sprayed finish |
| Video Output | Supports 4K 60Hz |
| Ethernet Ports | Dual Gigabit Ethernet (2.5G and 1G) |
| Expandability | RAM and storage expandable |
| Audio Support | 4-stage 3.5 mm standard audio interface |
| GPU Support | Dual monitor support |
| Power Efficiency | High (based on 65W base power) |
| Price (US) | $499 |
| Price (UK) | £401.74 |
| Availability | Chuwi website and select online retailers |
| Cooling Efficiency | Effective, quiet operation |
| Build Quality | Durable and stylish |
| Use Case | Office tasks, content creation, light gaming |
| Predecessor | Chuwi CoreBox 4th |
| Network Aggregation | Yes (enhanced network efficiency) |
| Market Position | Competes with AMD Ryzen mini PCs |
| Graphics Limitations | Not suitable for high-end gaming |
| Unique Feature | Mini tower design |
| VESA Mount | Yes (bracket included) |
| Tool Requirements | Hex-slot and cross-head screwdrivers |

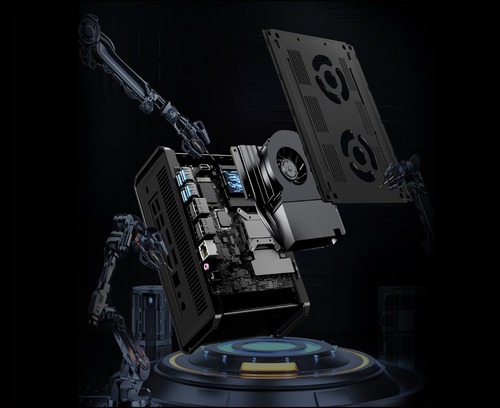

| Internal Access | Removable side panels |
| Extra Ports | Unused SATA port and power header |
| Performance Rating | Excellent for general computing |
| Competitive Edge | 13th Gen Intel mobile processors |
| Future Proofing | High (expandable RAM and storage) |
| Customer Support | Available via Chuwi’s website |
| Warranty | Standard manufacturer warranty |
| Upgradability | RAM, storage, and WiFi module |
| Product Launch | September 15, 2023 |
| Review Highlight | Balanced performance and portability |
Advanced Networking Capabilities
For networking, the CoreBox 5th offers a 2.5GbE LAN port, WiFi 6, and Bluetooth 5.1. These features ensure fast and reliable internet connectivity, whether wired or wireless, making it ideal for both office and home environments.
Efficient Cooling System

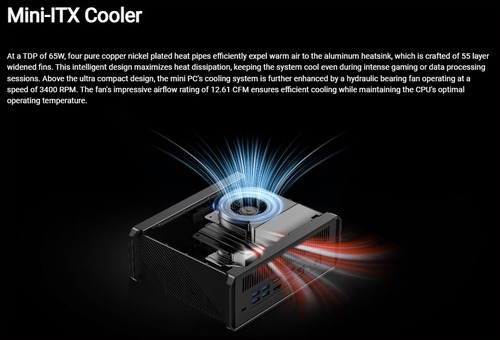

The CoreBox 5th’s cooling system is designed to maintain optimal performance while minimizing noise. The system includes a slim heatsink with four copper heat pipes and a 3,400 RPM fan, allowing the CPU to operate at an elevated TDP of 65W for sustained performance.
Compact and Stylish Design
Measuring just 173 x 158 x 73 mm, the CoreBox 5th is remarkably compact. Its sleek black finish and sand-blasted oxidation treatment give it a professional and durable appearance, fitting seamlessly into any workspace.
Operating System and Power Efficiency
The mini PC comes pre-installed with Windows 11 Pro, offering the latest features and security updates from Microsoft. With a base power consumption of 65W and a maximum turbo power of 95W, the CoreBox 5th is both powerful and energy-efficient.
Pricing and Availability
The Chuwi CoreBox 5th is competitively priced at $499 in the US and £401.74 in the UK. It is available directly from Chuwi’s website and selected online retailers, making it accessible to a wide range of consumers.
Performance Comparison
Compared to its predecessor, the CoreBox 4th, the CoreBox 5th offers significant improvements in performance and features. The upgraded CPU, faster RAM, and better connectivity options make it a worthwhile investment for those needing more power.
User Experience and Applications
The CoreBox 5th excels in various applications, including general office tasks, multimedia consumption, and light gaming. Its compact size and powerful components make it an excellent choice for users who need a reliable desktop replacement in a small package.
Final Thoughts
The CoreBox 5th represents a significant step forward for Chuwi in the mini PC market. Its combination of advanced hardware, efficient cooling, and comprehensive connectivity options positions it as a strong competitor in its category. For users seeking a compact yet powerful desktop replacement, the CoreBox 5th is a compelling choice.
Conclusion
In conclusion, the Chuwi CoreBox 5th is a powerful and versatile mini PC that offers excellent performance, a wide range of features, and a compact design. While it may not be the cheapest option, its balance of power and portability makes it an ideal choice for demanding users.
