Introduction to Chuwi LarkBox X 2023
The Chuwi LarkBox X 2023 is the latest iteration of Chuwi's compact mini PC lineup, delivering a remarkable balance of performance and portability. This model is powered by the 12th Gen Intel Alder Lake N100 processor, offering a versatile solution for everyday computing tasks.
Processing Power
At the heart of the Chuwi LarkBox X 2023 is the Intel N100 processor. This quad-core, quad-thread CPU operates at a base frequency of 0.8GHz and can turbo boost up to 3.4GHz. Coupled with a 6MB cache, the processor ensures smooth performance for general use cases, from web browsing to light multitasking.
Memory and Storage
The LarkBox X 2023 comes equipped with 12GB of LPDDR5 RAM, providing ample memory for efficient multitasking and smoother application performance. Storage needs are catered to by a 512GB M.2 SSD, which is expandable up to 1TB, allowing users to store a significant amount of data and applications.
Display Capabilities
Supporting up to three displays, the LarkBox X 2023 offers impressive visual output capabilities. It includes a Type-C port, DisplayPort, and HDMI port, each capable of delivering 4K resolution at 60Hz. This feature is ideal for users who require multiple monitors for enhanced productivity.
Connectivity Options
The Chuwi LarkBox X 2023 boasts robust connectivity options, including WiFi 6 and Bluetooth 5.2 for fast and stable wireless connections. It also features multiple USB 3.2 ports, ensuring compatibility with a wide range of peripherals and devices.
Chuwi LarkBox X 2023 Technical Specifications
| Feature | Specification |
|---|---|
| Processor | Intel N100 (4C/4T, 6MB Cache, up to 3.4GHz) |
| Memory | 12GB LPDDR5 RAM |
| Storage | 512GB M.2 SSD (supports up to 1TB upgrade) |
| Dimensions | 5 x 5 x 2 inches (12.7 x 12.7 x 5.1 cm) |
| Weight | 460g |
| Display Output | Triple (4K@60Hz) |

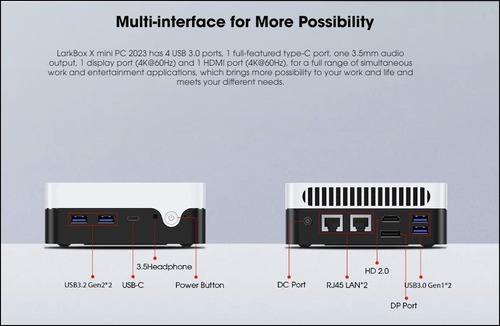

| Ports | Type-C, DisplayPort, HDMI |
| USB Ports | 4 x USB 3.2 Type-A |
| Audio | 3.5mm audio jack |
| Ethernet | 2 x 2.5 GbE Ethernet |
| Wireless Connectivity | WiFi 6, Bluetooth 5.2 |
| Cooling | Active cooling with fan |
| Mounting | VESA mount compatible |
| GPU | Intel UHD Graphics Xe 24Eus @ 750MHz |
| Power Supply | External power adapter |
| Operating System | Windows 10/11, Linux compatible |
| Price | $199 |
| Release Date | 2023 |
| Max Screen Resolution | 3840 x 2160 Pixels |
| Screen Resolution | 3840 x 2160 (4K) |
| Processor Base Frequency | 0.8GHz |
| Processor Max Frequency | 3.4GHz |
| Cache Size | 6MB |
| USB Type-C | 1 (w/DisplayPort Alt Mode) |
| USB Type-A | 4 |
| HDMI | 1 |
| DisplayPort | 1 |
| Audio Jack | 3.5mm |
| LAN Ports | 2 |
| LAN Speed | 2.5 GbE |
| RAM Type | LPDDR5 |
| RAM Speed | 4800MHz |
| SSD Type | M.2 |
| SSD Size | 2280 |
| Bluetooth Version | 5.2 |
| WiFi Standard | WiFi 6 |
| Cooling System | Active |
| Mount Compatibility | VESA |
| Graphics Architecture | Xe |
| Graphics EUs | 24 |
| GPU Frequency | 750MHz |
| USB Standards | USB 3.2 |
| Ethernet Standard | 2.5 Gigabit |
| Price Comparison | $199 vs $399 (predecessor) |
| Storage Expansion | Up to 1TB |
| User Replaceable SSD | Yes |
| Soldered RAM | Yes |
| Noise Level | Low (BIOS optimized) |
| Single-Core Performance | Near Ryzen 7 3750H |
| Multi-Core Performance | Lower than Ryzen 7 3750H |
| Target Market | Budget Mini PC users |
| Typical Use Cases | Browsing, Streaming, Office Work |
| Not Suitable For | AAA Gaming, Heavy Video Editing |
| Additional Ports | 1x HDMI 2.0, 1x DisplayPort |
| Ethernet Upgrade | From 1 GbE to 2.5 GbE |
| RAM Upgrade | From 8GB (predecessor) to 12GB |
| Storage Upgrade | From 256GB (predecessor) to 512GB |
Design and Form Factor

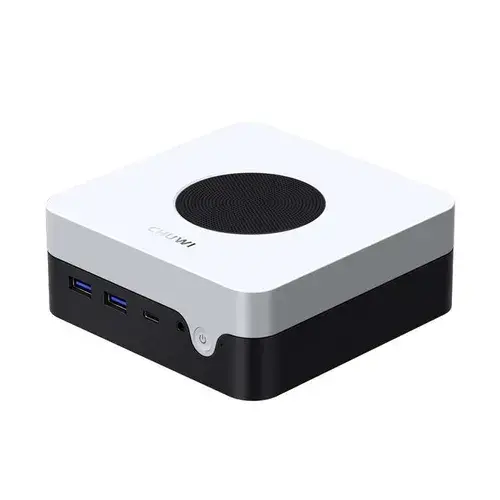

Measuring just 127 x 127 x 49mm and weighing 460g, the LarkBox X 2023 is highly portable and space-efficient. Its compact size makes it an excellent choice for users with limited desk space or those who need a portable computing solution.
User Feedback
Reviews for the Chuwi LarkBox X 2023 have been largely positive. Users appreciate its value for money and commend its performance for tasks such as browsing, streaming, and emulation. However, some have noted that the graphics performance could be better, which is attributed to the BIOS being optimized for low noise rather than peak performance.
Comparison with Competitors
In the budget mini PC market, the LarkBox X 2023 competes with models like the GMKtec Mini PC N100 and the KAMRUI AK2 PLUS Mini PC. While it may not be the top performer, it strikes a balance between features and affordability, making it a strong contender in its category.
Graphics Performance
The LarkBox X 2023 features an Intel UHD Graphics Xe GPU with 24 Execution Units running at 750MHz. While this GPU may not handle intensive gaming, it is sufficient for 4K video playback and basic graphical tasks, making it suitable for general entertainment purposes.
Cooling and Noise Levels

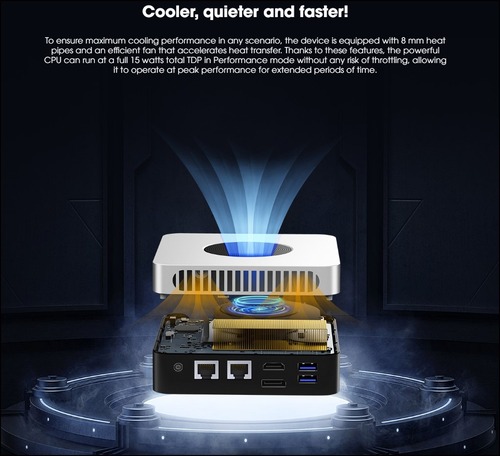

Equipped with active cooling, the LarkBox X 2023 maintains a low temperature during operation. The cooling fan ensures that the system remains efficient, although this comes at the cost of slightly lower graphics performance due to a BIOS setting optimized for low noise.
Portability and Versatility
Thanks to its small form factor and VESA mount compatibility, the LarkBox X 2023 can be easily mounted behind a monitor, saving desk space and enhancing workspace organization. Its lightweight design also makes it easy to carry around, adding to its versatility.
Value
At a price point of $199, the LarkBox X 2023 is a cost-effective option for those seeking a reliable mini PC for everyday tasks. It offers a significant price reduction compared to its predecessor while doubling the storage and enhancing Ethernet connectivity.
Conclusion
The Chuwi LarkBox X 2023 stands out as a compact, affordable, and efficient mini PC suitable for general use. While it may not be ideal for heavy gaming or intensive applications, it excels in providing a reliable computing experience for tasks like web browsing, streaming, and office work.
Final Thoughts
The Chuwi LarkBox X 2023 is an excellent choice for users seeking a balance of performance, portability, and affordability. Its robust set of features and positive user feedback make it a compelling option in the mini PC market.
